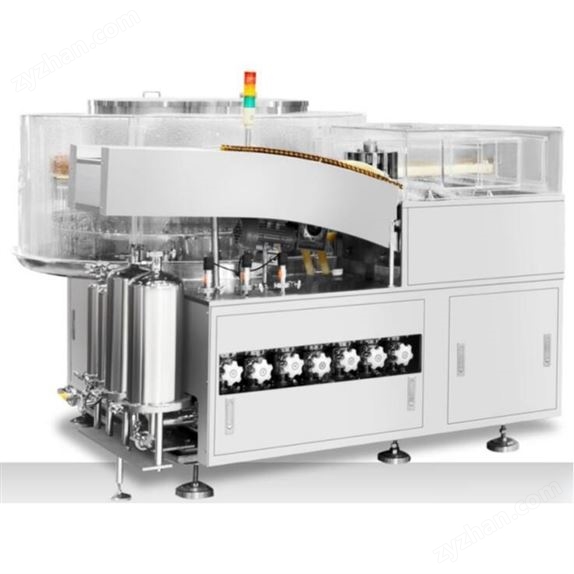

立式超聲波洗瓶機設備簡介 Equipment introduction
本機適用于制藥、保健品廠管制或模制抗生素瓶的清洗，也可用于針劑安瓿或口服液瓶的清洗。本機為立式結構，采用機械手夾瓶和噴管作往復跟蹤的方式，利用超聲波清洗和水氣交替清洗的原理，對容器進行清洗。破瓶率低，通用性廣，運轉平穩，水氣管路不交叉污染，符合GMP要求。
This machine is suitable for pharmaceutical, health products factory control or mold antibiotic bottle cleaning, can also be used for injection ampoule or oral liquid bottle cleaning. The machine is a vertical structure, using the robot arm to clamp the
bottle and nozzle for reciprocating tracking, ultrasonic cleaning and alternating water and gas cleaning, to clean the container. Low broken bottle rate, wide versatility, smooth operation, no cross contamination of water and gas pipeline, meets GMP requirements .
立式超聲波洗瓶機技術參數 Technical parameter
| 設備型號 Equipment type | |
| 適應規格/Applicable speci Tcation | 2-50ml |
| 產量/Capacity | 60-300 bottles/min |
| 回用水流量/Recycled water ?ow | 0.6-0.8 m3/h |
| 純化水流量/Puri Ted water ?ow | 0.6-0.8 m3/h |
| 注射水耗量/Injection water consumption | 0.6 m3/h |
| 凈化壓縮空氣耗量/Puri Ted compressed air consumption | 30m3/h |
| 超聲波功率/Ultrasonic power | 2.0 KW |
| 工作氣壓/Working air pressure | 0.2-0.25Mpa |
| 電源/Power supply | 3 Ph. 380V, 50/60Hz |
| 功率/Power | 16KW |
注：圖片僅供參考，最終以客戶定制產品為準 Note:The picture is for reference only, and the Tnal product is subject to customer customization
